Features
Operation Panel
Self-explanatory symbols are on display. The device can thus be operated intuitively and settings be configured easily.
Ribbon Holder
On the basis of three-part tightening axles, ribbons can be replaced easily and quickly.
Rugged Metal Chassis
It is made of cast aluminum. All the parts are assembled to it.

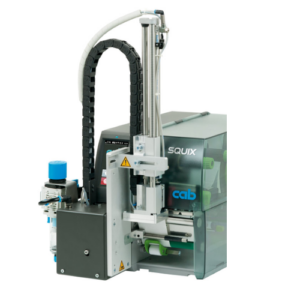

Applicator
It is assembled to hinge pins. It can be pivoted in case of maintenance or if materials have to be replaced.
Pressing plungers
One is fixed near the chassis wall. The second one is pushed to the label margin, as far as necessary to evoke a good print image.
Print head
Units of the same width are interchangeable. Replacement requires only few steps.
Print roller
It can be removed/inserted quickly in cases of cleaning or wear.
Peel-off plate
Pivoting improves labels be applied to packages.
Label unwinder
A swing arm and an integral brake enable labels be unwound at constant force.
Liner rewinder
Subsequent to all the labels been dispensed, the entire liner tape is rewound. On the basis of a three-part tightening axle, liner tapes can be inserted and removed easily.
Pulling system
A liner tape is clamped between a draw roller and a pinch roller. Labels are dispensed using feed synchronous to the print roller.
Label sensor
Imprint is precisely set on spot on a label and materials ending detected by a transmissive or a reflective sensor.
Accurate imprint
The smaller a label, the higher are the demands regarding the accuracy of an imprint. Print offset can be reduced by ±0,2 mm using adjustable slip correction.
